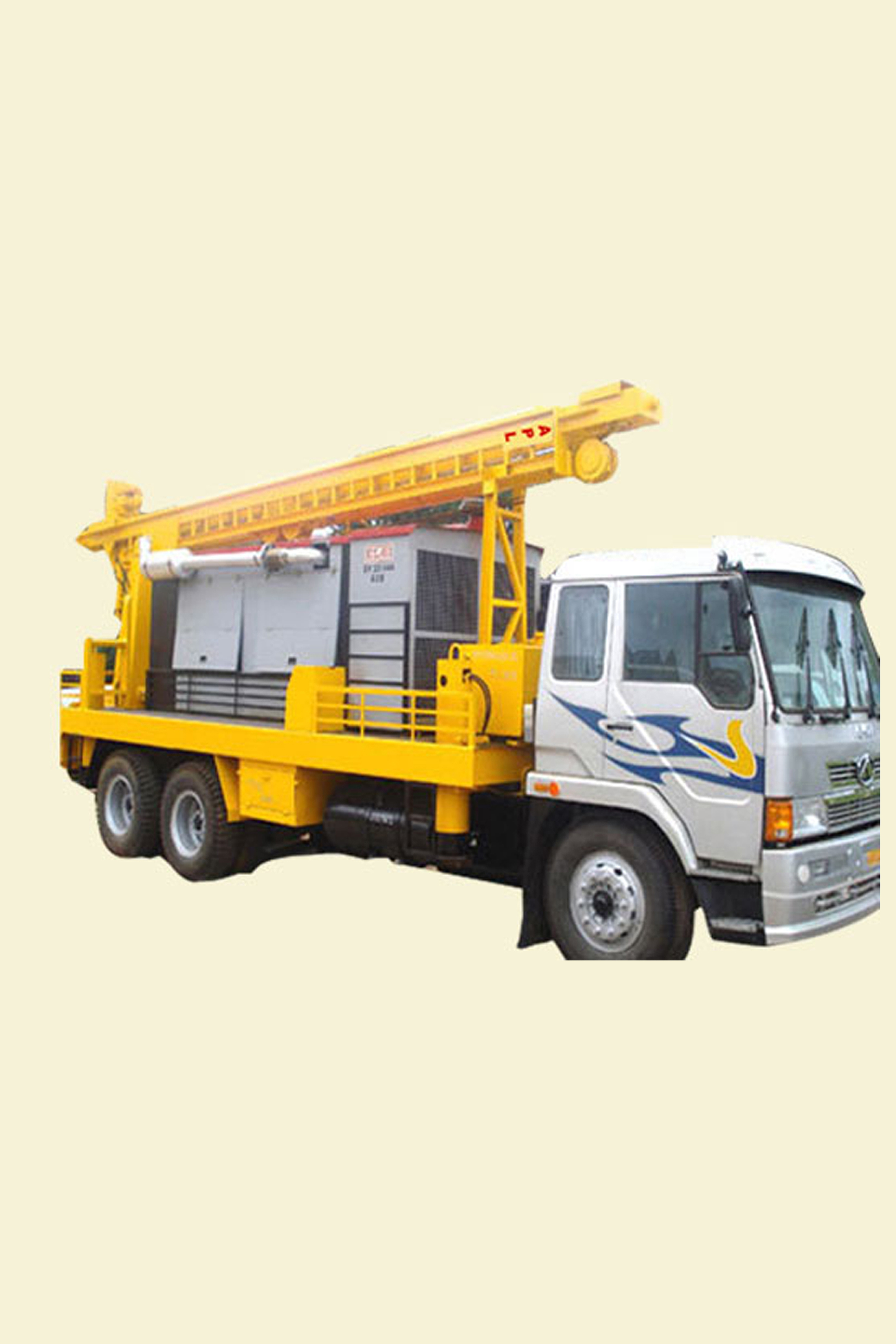

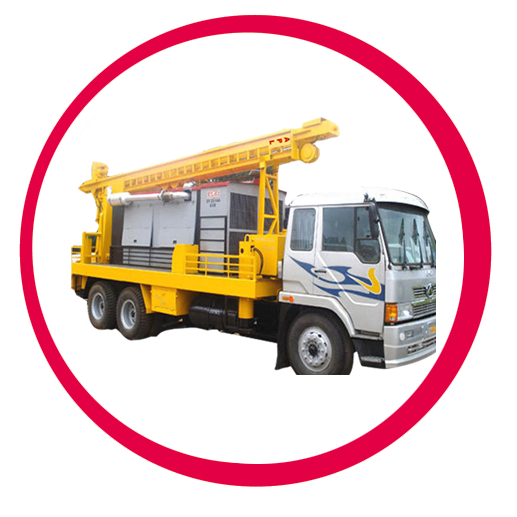

DTH DRILLING RIGS - DTH-1000
- Capacity : DTH - 1000
- Drill Size Min. - Max : 8" to 10"
- Max. Depth : 300 mtr
- Pull Down : 6000 Kgf
- Pull Back : 10200 Kgf
- Hoisting Speed :45 mtr/min
- Mast Length : 8620mm
- Rotary Head Drive Length :6950mm
- Centric Opening :270mm
- Compressor : 1100 CFM/300 PSI
- Max Pressure : 250 Kgf/cm2
- Capacity : 550 Ltr
- Prime Mover Rated Capacity : 98ps@1500 Rpm
- Carrier Wt.: 163psi@2600 Rpm
- Road handling Capacity : Up to 6 mtr
- Road head Torque/Rotation Speed :280 Kg-m,0-100 Rpm
- Water Injection : 50 Ltr / Min
- Pump Flow Pressure :40 kg/cm
- MRC :100x800 - 1 No.
