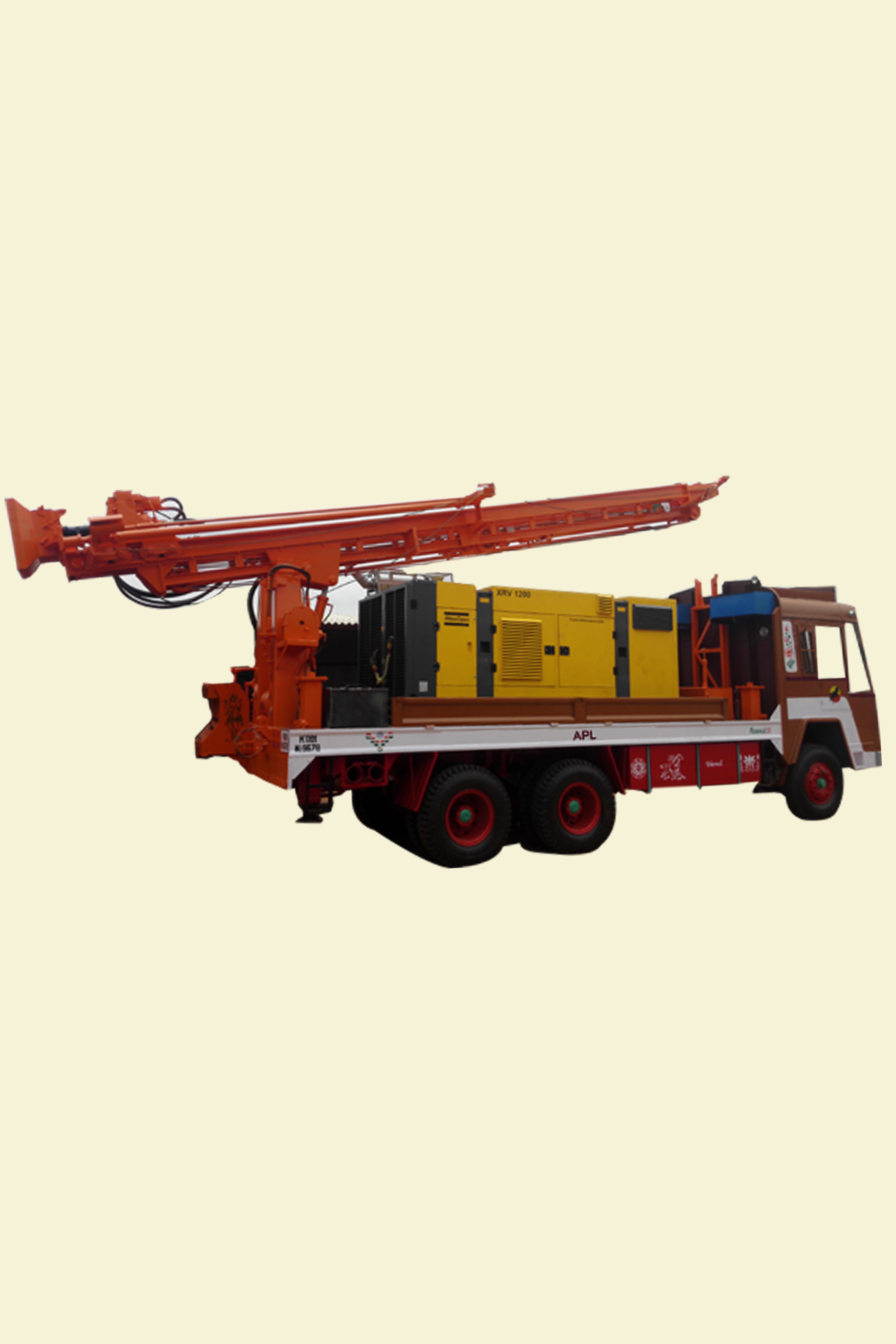

DTH DRILLING RIGS - DTH-2000
- Capacity : DTH - 2000
- Drill Size Min. - Max :8" to 11"
- Max. Depth :600 mtr
- Pull Down :11200 Kgf
- Pull Back :18400 Kgf
- Hoisting Speed :27mtr/min
- Mast Length : 8620mm
- Rotary Head Drive Length :6950mm
- Centric Opening :311mm
- Compressor : 1100 CFM/300 PSI
- Max Pressure : 275 Kgf/cm2
- Capacity : 550 Ltr
- Prime Mover Rated Capacity :98ps@1500 Rpm
- Carrier Wt.: 163psi@2600 Rpm
- Road handling Capacity : Up to 6 mtr
- Road head Torque/Rotation Speed :300 Kg-m,0-90 Rpm
- Water Injection : 50 Ltr / Min
- Pump Flow Pressure :40 kg/cm
- MRC :100x800 - 2 No.
