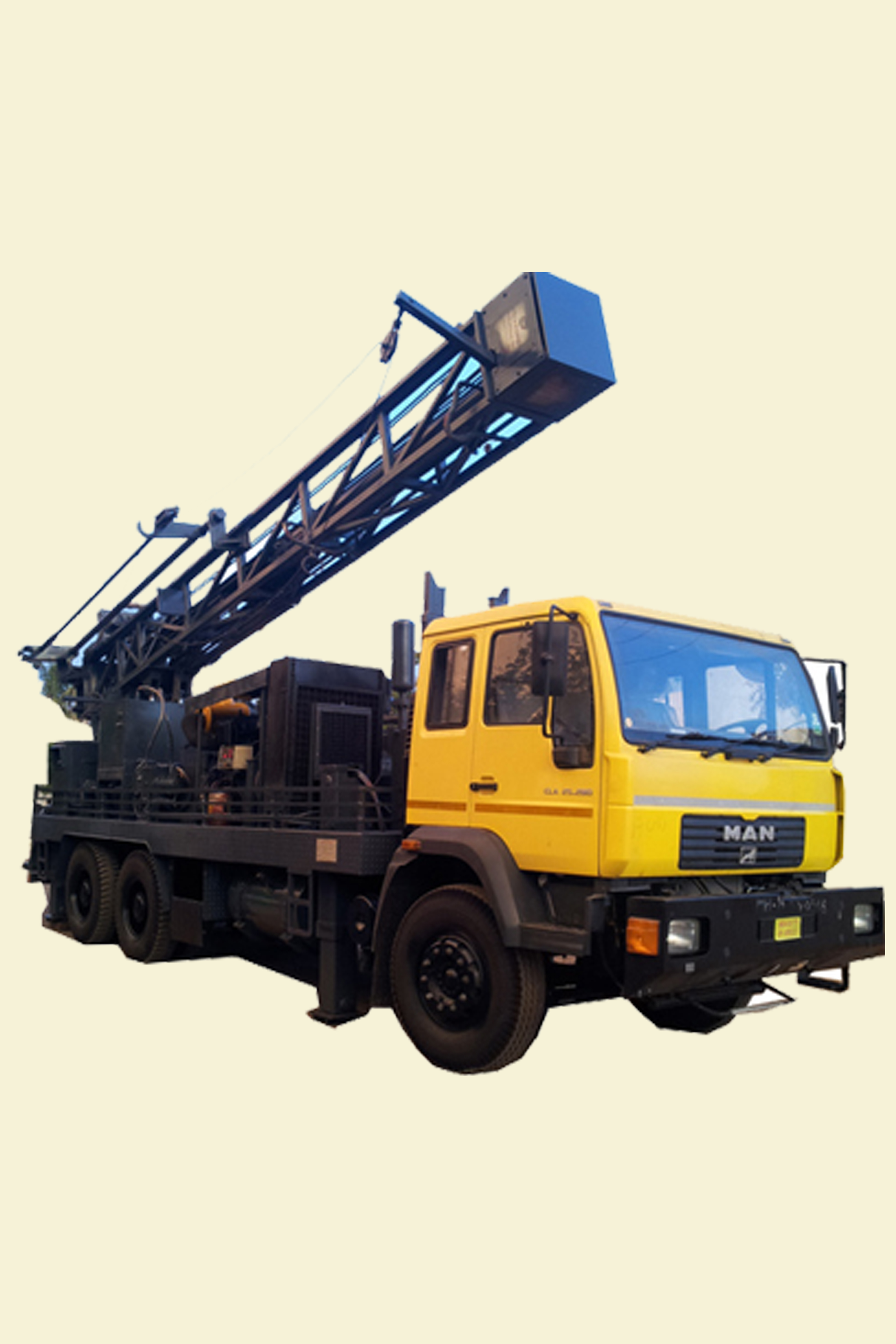

DTH CUM ROTARY DRILLING RIGS DTHR-100
  • Capacity : DTHR 100
  • DTH Drill Size Min. - Max :4�"-6�"
  • Depth :Up to 100Mtr
  • Rotary Drill Size Min. - Max :6 �"-8"
  • Pull Back:4700kgf
  • Pull Down :2400kgf
  • Hoisting Speed : 50Mtr/min
  • Mast Length :5950mm
  • Rotary Head Drive :4450mm
  • Air Compresser : 540cfm/185psi
  • Power Pack Max Pressure : 180Kg/cm2
  • Prime Mover Rated Capacity: 75Hp@2220Rpm
  • Carrier Wt. :16tones
  • Model : 1613come4x2
  • Engine Rating: 130ps@2600rpm
  • Rod Handling Capacity :Up to 3mtr
  • Torque : 215Kg-m
  • Rotation speed :0-120rpm
  • Water Injection Pump Flow :50ltr/min
  • Water Injection Pressure :40Kg/cm2
  • Mud Pump Bxst :114x125mm
  • Max Flow :500 ltr/min
  • Max Pressure :17Kg/cm2
