DTH CUM ROTARY DRILLING RIGS DTHR-300
  • DTH Drill Size Min. - Max :8"-10"
  • Depth :Up to 300Mtr
  • Rotary Drill Size Min. - Max :12�"-16"
  • Pull Back:11200kgf
  • Pull Down :5500kgf
  • Hoisting Speed : 45Mtr/min
  • Mast Length :8950mm
  • Rotary Head Drive :6950mm
  • Air Compresser : 1100-150cfm/300psi
  • Power Pack Max Pressure : 220Kg/cm2
  • Power Pack Capacity : 800Ltr
  • Prime Mover Rated Capacity: 151Hp@1500Rpm
  • Carrier Wt. :25tones
  • Model : 2516come6x4
  • Engine Rating: 163ps@2600rpm
  • Rod Handling Capacity :Up to 6mtr
  • Torque : 600Kg-m
  • Rotation speed :0-100rpm
  • Rotation speed :0-100rpm
  • MRC bXst :100x800 - 1no
  • Water Injection Pump Flow :80ltr/min
  • Water Injection Pressure :40Kg/cm2
  • Mud Pump Bxst :150x150mm
  • Max Flow :1021 ltr/min
  • Max Pressure :15Kg/cm2
CUM ROTARY DRILLING RIGS
  • DTHR - 100

    DTH CUM ROTARY DRILLING RIGS DTHR 100

  • DTHR - 300

    DTH CUM ROTARY DRILLING RIGS DTHR 300

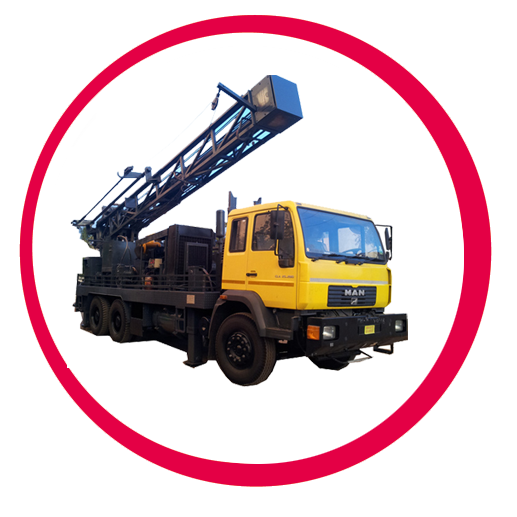

  • DTHR - 450

    DTH CUM ROTARY DRILLING RIGS DTHR 450

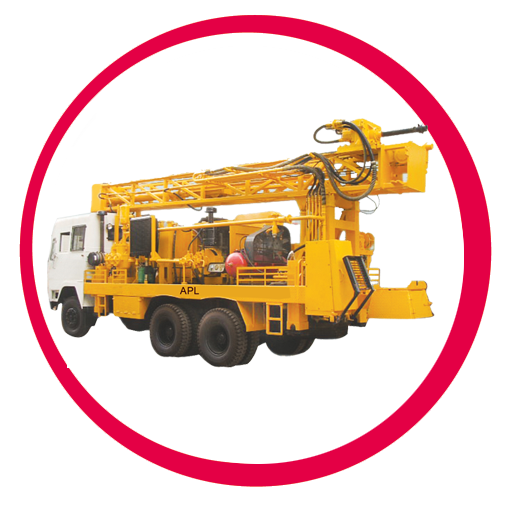

  • DTHR - 600

    DTH CUM ROTARY DRILLING RIGS DTHR 600
